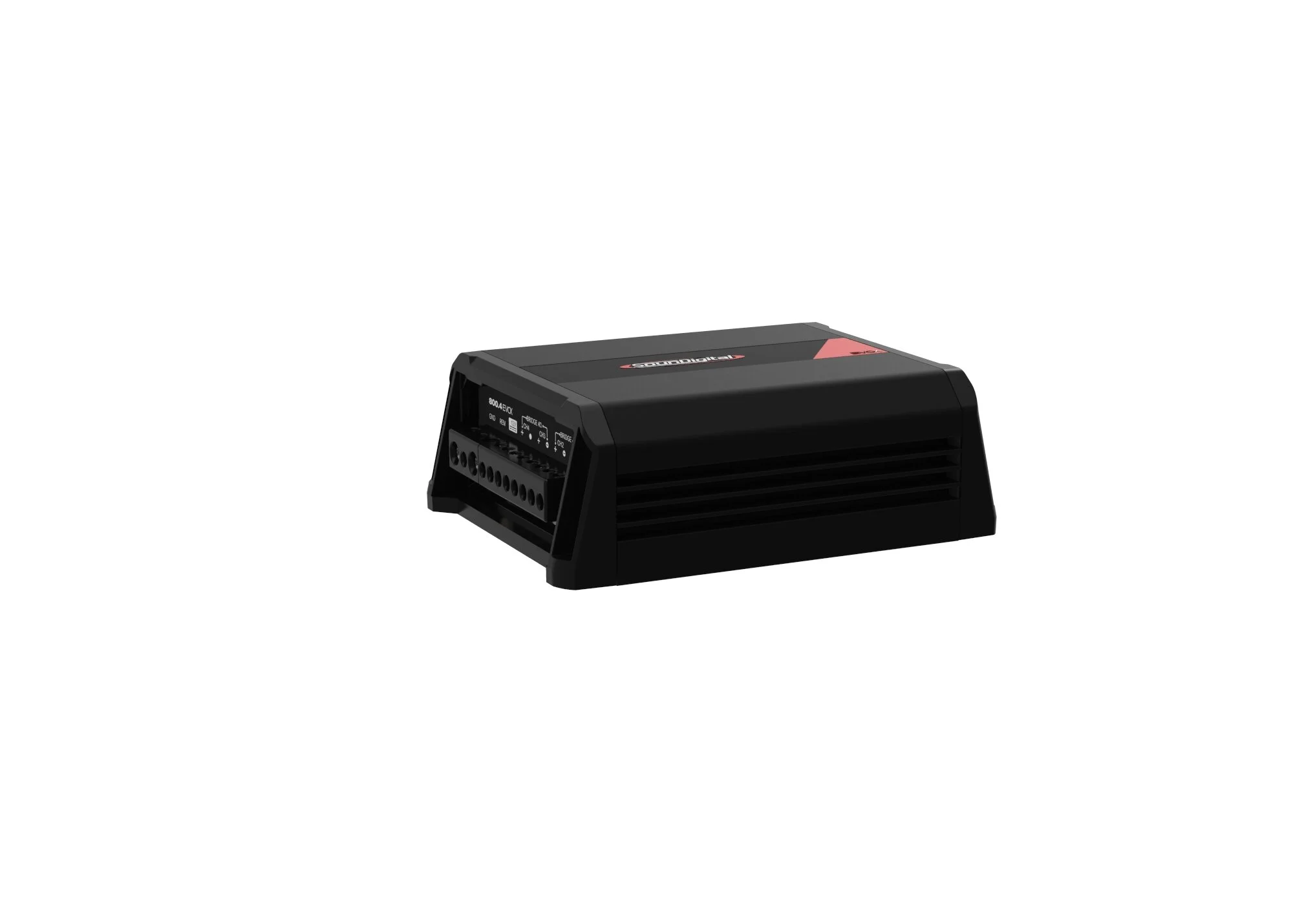

SounDigital 800.4 EVOX2 Amplifier

4-Channel High-Power Amplifier in 4Ω Version

Description

The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.

The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.

The technology used in the SounDigital products brings both high performance and power in a small chassis, providing installation solutions for vehicles with limited space and finishing.

Specifications / Information:

4 Ohm Version

• Power @ 12.6V @ 4Ω: 4 X 132 WRMS

• Power @ 12.6V @ 2Ω: 4 X 200 WRMS

• Power @ 12.6V @ 1Ω: N/A

• Bridge Power @ 12.6V @ 4Ω: 2 X 400 WRMS

• Bridge Power @ 12.6V @ 2Ω: N/A

• Power @ 14.4V @ 4Ω: 4 X 147 WRMS

• Power @ 14.4V @ 2Ω: 4 X 223 WRMS

• Power @ 14.4V @ 1Ω: N/A

• Bridge Power @ 14.4V @ 4Ω: 2 X 446 WRMS

• Bridge Power @ 14.4V @ 2Ω: N/A

• Operating Voltage: 8V – 16V

• Current Draw (Music): 40 A

• Current Draw (Max): 80 A

• Recommended Fuse (Music): 40 A

• Total Efficiency: 79%

• Damping Factor: 200

• Frequency Response (-3dB): 5Hz – 22kHz

• SNR: 91dB

• Crossover HPF: 45Hz – 850Hz

• Crossover LPF: 45Hz – 850Hz

• THD + N (10% Rated Power): 0.1%

• Product Dimensions: 5.8 x 4.4 x 2.0 in

• Product Dimensions: 14.8 x 11.3 x 5.1 cm
