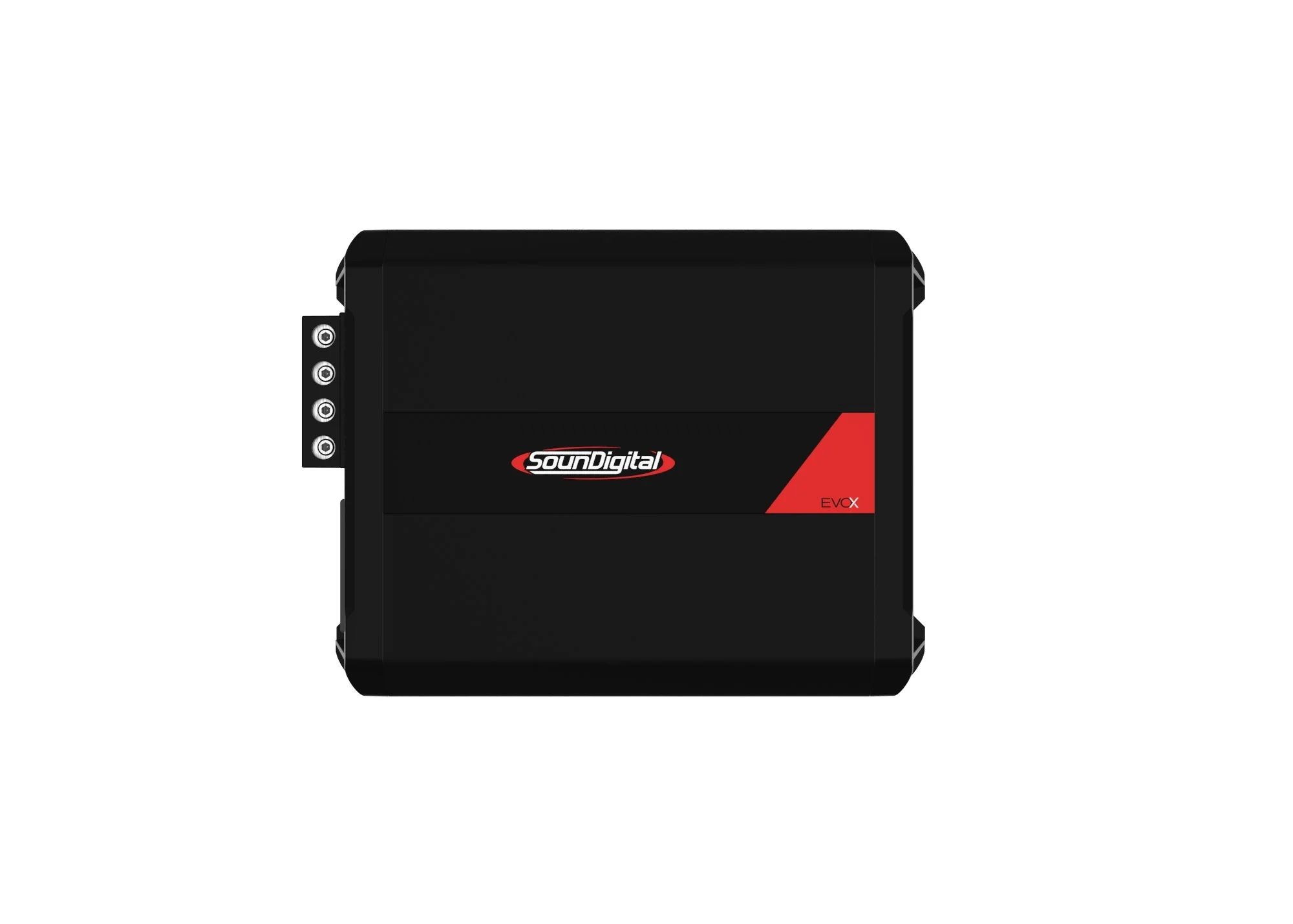

SounDigital 1200.4 EVOX2 Amplifier
4-Channel High-Power Amplifier in 4Ω or 2Ω Versions
Description
The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.
The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.
The technology used in the SounDigital products brings both high performance and power in a small chassis, providing installation solutions for vehicles with limited space and finishing.
Specifications / Information:
2 Ohm Version
Power @ 12.6V @ 4Ω: 4 X 130 WRMS
Power @ 12.6V @ 2Ω: 4 X 198 WRMS
Power @ 12.6V @ 1Ω: 4 X 300 WRMS
Bridge Power @ 12.6V @ 4Ω: 2 X 396 WRMS
Bridge Power @ 12.6V @ 2Ω: 2 X 600 WRMS
Power @ 14.4V @ 4Ω: 4 X 145 WRMS
Power @ 14.4V @ 2Ω: 4 X 221 WRMS
Power @ 14.4V @ 1Ω: 4 X 335 WRMS
Bridge Power @ 14.4V @ 4Ω: 2 X 442 WRMS
Bridge Power @ 14.4V @ 2Ω: 2 X 669 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 57 A
Current Draw (Max): 113 A
Recommended Fuse (Music): 60 A
Total Efficiency: 84%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 88dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm
4 Ohm Version
Power @ 12.6V @ 4Ω: 4 X 198 WRMS
Power @ 12.6V @ 2Ω: 4 X 300 WRMS
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: 2 X 600 WRMS
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 4 X 221 WRMS
Power @ 14.4V @ 2Ω: 4 X 335 WRMS
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: 2 X 669 WRMS
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 58 A
Current Draw (Max): 116 A
Recommended Fuse (Music): 60 A
Total Efficiency: 82%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 88dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm
